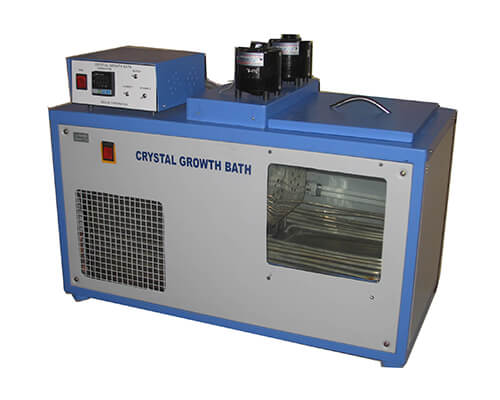

CRYSTAL GROWTH BATH

CRYSTAL GROWTH BATH

• Double walled construction.
• Inner chamber made of Stainless steel fitted with
• Toughened glass window for visibility of samples.
• Outer chamber made of Mild steel duly powder coated Surface.
• Temperature range 5°C above ambient to 70°C
• Resolution: ± 0.01.  Temperature control accuracy   ± 0.1°C
• Temperature is controlled by mP based Digital Temperature
• Controller with pt 100 sensor.
• Two nos of Motorized Stirrer fitted at top for smooth agitation and also ensure uniformity of temperature throughout the Bath
• Individual switches provided for Stirrer operation.
• Heating by the aid of ISI quality immersion heaters fitted at the top. 2 Nos for GAIN and BOOSTER control.
• Safety controller also be provided for High temperature safety cut off.
• Illumination by the aid of fluorescent lamp fitted at rear side of the unit.
• Refrigeration system consists of hermetically sealed compressor “Emerson”
• Condenser Fan Motor, Drier and Tubing etc.
• Cooling evaporator evenly placed inside the bath to bring down the temperature efficiently.
• Removable type Stainless Steel LID provided with holes to keep the beakers.
• Adjustable stand to hold beakers.
• Drain plug provided to drain the water for cleaning purpose.
• Power supply 220-230 Volts AC single phase power supply
