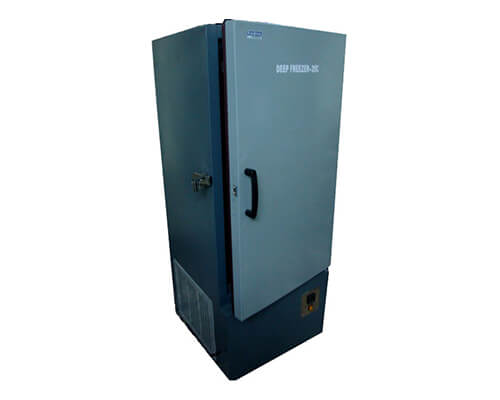

DEEP FREEZER

Vertical models
  • Double walled Construction.
  • Inner chamber made of Stainless Steel SS 304 (22swg) grade
  • Outer chamber made of Mild steel sheet steel duly powder coated surface.
  • In between Inner and Outer walls high density PUF insulation (50 mm)
  • Provided to minimize the heat infiltration.
Refrigeration system
  • Consists of hermetically sealed compressor using CFC free gas, condenser, air cooled by a separate heavy duty motor driven fan fitted at the bottom side of the unit.
  • Evaporator coil evenly placed outer side of Inner working chamber. which brings down the temperature.
  • Temperature is controlled by Microprocessor based Digital Temperature
  • Controller with sensor. with audio visual alarm.
  • In vertical models Inner View door made of Acrylic to see the samples kept
  • Double Door is fitted with magnetic gasket and lock.
  • Inner working chamber is separated into no. of chambers by perforated stainless Steel plate. (in vertical models)
  • The Voltage stabilizer will be supplied along with the unit to protect the Compressor, from voltage fluctuation.
  • The unit is also fitted with caster wheels for ease of movement.
  • Power supply 220-230 Volts AC Single phase.

Specifications:

    Temperature range                               :           up to –  20°C

 Temperature control accuracy           :           ± 1 °C

MODEL Capacity Inner Working Dimensions         No. of Trays
RSDF- 1

RSDF -1GMP

200 liter

600W x 650D x 450H cm

02 nos
RSDF- 2

RSDF- 2 GMP

280 liter

660 W x 650D x 650D cm

03 nos
RSDF- 3

RSDF-3 GMP

370 liter

660W x 650D x 850H cm

04 nos
RSDF- 4

RSDF-4 GMP

450 liter

660W x 650D x 1050H cm

05 nos
RSDF- 5

RSDF-5 GMP

540 liter

660W x 650D x 1250H cm

06 nos
RSDF- 6

RSDF-6 GMP

800 liter

800W x 800D x 1250H cm

06 nos
RSDF- 7

RSDF-7 GMP

1000 liter

800W x 800D x 1575H cm

07 nos
