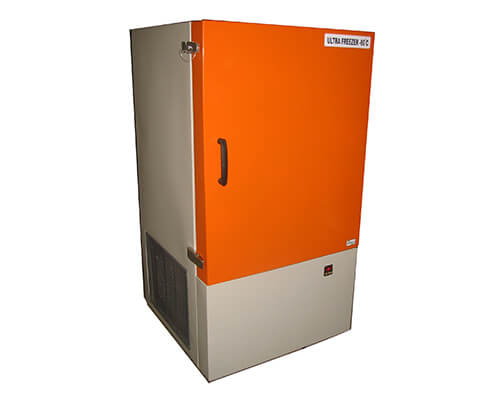

ULTRA LOW TEMPERATUE FREEZER
Specially designed for cryopreservation.
Double walled construction.
Inner chamber made of heavy gauge Stainless steel SS 304 grade
Outer chamber made of GI sheet steel duly powder coated surface.
In between Inner and Outer walls PUF insulation (6”) provide to minimize the loss of temperature.
Operating Temperature -45°C to -80°C (at room temperature 25°C)
Refrigeration system consists of hermetically sealed compressor ‘Emerson’
Cascade system, Condenser Fan motor, Drier, capillary etc.,
Temperature is controlled by mP based Digital Temperature controller With pt 100 sensor. (LCD display)
Safety features:
Audio visual Alarms for Temperature High/Low,
Power failure, Batter low, Door open, Compressor ON (visual)
Power ON (Visual)
Internal Door also be provided
Main Door fitted with Double Magnetic gasket, heavy duty hinges and Lock.
Power supply 220-230 Volts AC Single phase.
Caster wheels for ease of movement.
| Model | Volume | Inner chamber size | No. of Trays | No. of Internal doors |
| RUDF-1 | 100 liter | 45 x 45 x 60 cm | 02 no | 01 no |
| RUDF-2 | 180 liter | 50 x 50 x 75 cm | 03 nos | 02 nos |
| RUDF-3 | 360 liter | 70 x 52 x 100 cm | 06 nos | 04 nos |
